Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions

Name: Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions
Brand: EBUNGE
Price: 82 USD

Quality Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions wholesale

Brand Name : EBUNGE

Model Number : 85 mm sound proof partitions

Certification : ISO 9001

Place of Origin : Guangzhou, China

MOQ : No MOQ, small quantity welcome

Price : $82-98 per square meter.

Payment Terms : T/T, Western Union

Supply Ability : 50000 square meters per month

Delivery Time : 7-15 days

Packaging Details : Paper carton, outside with wooden box.

Product name : Sound proof partitions

Application : Banquet room partitions

Style : Folding

Sample : Free

Color : Optional

Feature : Sound proof

Contact Now

Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions

Finished project

Thanks for the trust from a Chichago Client. This project finished in April.

Application: Hotel banquet hall

Surface: Melamine + Fabric(Hard Cover)

Height: 3886 mm

Width: 21665 mm

Total amount: 84.2 square meters.

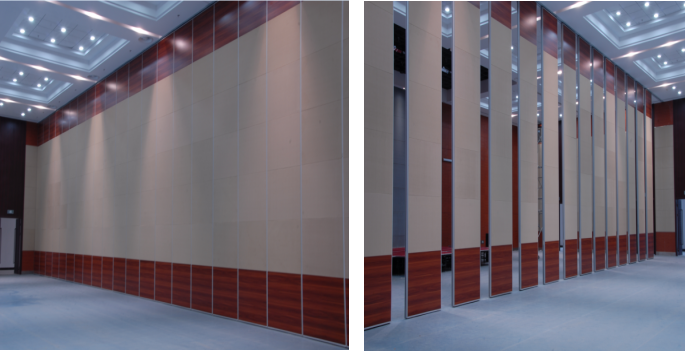

Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions

Sound proof partitions details

The sound proof partitions series is the most popular specification range of fully operational single-panel sliding partition systems. The noise reduction of up to 50dB noise is achieved with a combination of operable top and bottom seals, high performance multiple sound absorbing material in sound proof partition walls and panel assembly design which allows noise reduction between the frame and the outer layer.

The vertical channel of each sound proof partitions panel contains a polymer insert that is acoustic sealed when the panels are placed as a wall. The sound proof partition walls are available in three thicknesses, 65mm, 85mm and 100mm, depending on the acoustic rating (from 30dB to 50dB).

Sound proof partition wall is usually used where indoor space needs to be fully utilized. Hotels, convention centers, educational institutions, offices, training areas, etc. can all benefit from the flexibility of partition wall sound insulation system.

When the operable seal is retracted, the panel slide easily along a unique aluminum overhead rail system (no floor rails are required). The telescopic end panel allows the walls to be locked off to complete the acoustic seal. The rail and carrier systems make sure acoustical partition wall is easy to operate and change direction, allowing panel stacking in countless configurations.

For aesthetic appeal, it is possible to provide almost any decorative finish, including veneer, laminates, walls, carpets, whiteboards and decorative lacquers.
Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions

Technical information

Model	BG65	BG85	BG100	Ultra-high System
Suspension System	Hanging System, with ceiling rails
Basic Thickness	65mm	85mm	100mm	100 mm
Max Height	Max 3800 mm	Max 6000 mm	Max 8000 mm	Max 15000 mm
Width	800 -1230mm
Floor/ceiling Sealing strength	Telescopic aluminum tube with rubber strip
Side Walls Sealing Strength	Double seal tape
Base Board Thickness	9 mm	9 mm	12 mm	12 mm
Vertical Profiles	Aluminum anodised with sealing profiles
Retractable Seals	Aluminum black with double rubber seals
Operation	Manual System, with supplied operating handle
Pass Doors	Single or Double Pass Through Door Available
Weight	Approx 22-35 kg/m²	Approx 25-40 kg/m²	Approx30-48 kg/m²	Approx38-68 kg/m²
Finish Options	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Banquet Hall Movable Sound Proof Partition Wall Acoustic Folding Room Partitions

Client Visiting
