Banqueting Hall Sliding Partition walls Door Soundproof Wooden With Fabric Surface
BUNGE partition wall operable
When moving a wall panel there is a 20-25 mm gap between the top pf the endersize of the head track ,there is a similanr gap between the bottom of the panel and the floor.
Once a panel is posititoned ,acoudtic integrity is maintained along the top and bottom of the panel by extending predure seals.The pressure seals are extendes and retracted by a single 180 degree ture of a removable op erating handle.
Final closure of the wall is achwared by extending a telescopic sleeve on the last panel .This action simultaneously the top and bottom seals.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 8000 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door |
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum |
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) |

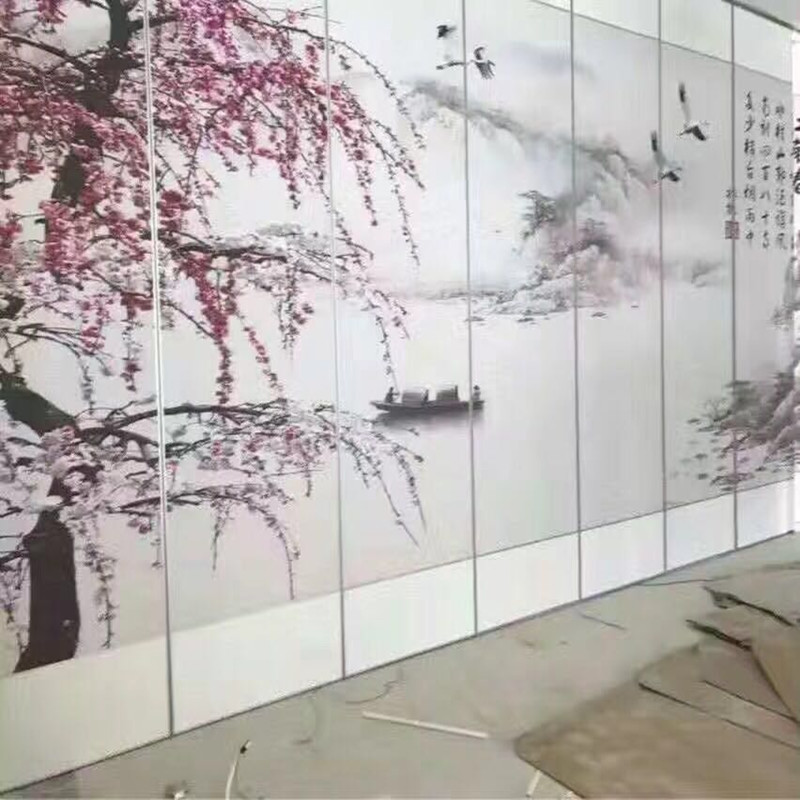

Finished Project
Thanks for the trust from the client. We finished the packing and shipped to agent's warehouse on March 4th,2019.
This is a project in Lebanon,8 meters height partitions,using the steal materials,including the steel tracks,the steel rollers and the steel haging clips.
Totally around 480 square meters.
Actually our steel system can support 900 KG materials,so that is enough to support the panels for this project.
Do you still worry about the installtion? Please do not worry,our professional team can help you about that.
For this project,we just delivered the accessories yesterday by air, and we will send our engineer(Mr. Zeng) to Lebanon to supervise the installation.
Application
Hotels,Stadium, Auditorium, Multifunction room, Meeting room, Studio ,Religious Facilitiesand ,Civic or Exposition Halls ,School,
Restaurants,Gymnasiums any other places where seek for high acoustic requirements.
About us
Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system , and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.
As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply Free design to every client and we will reply in 12 hours if the clients have any questions.
