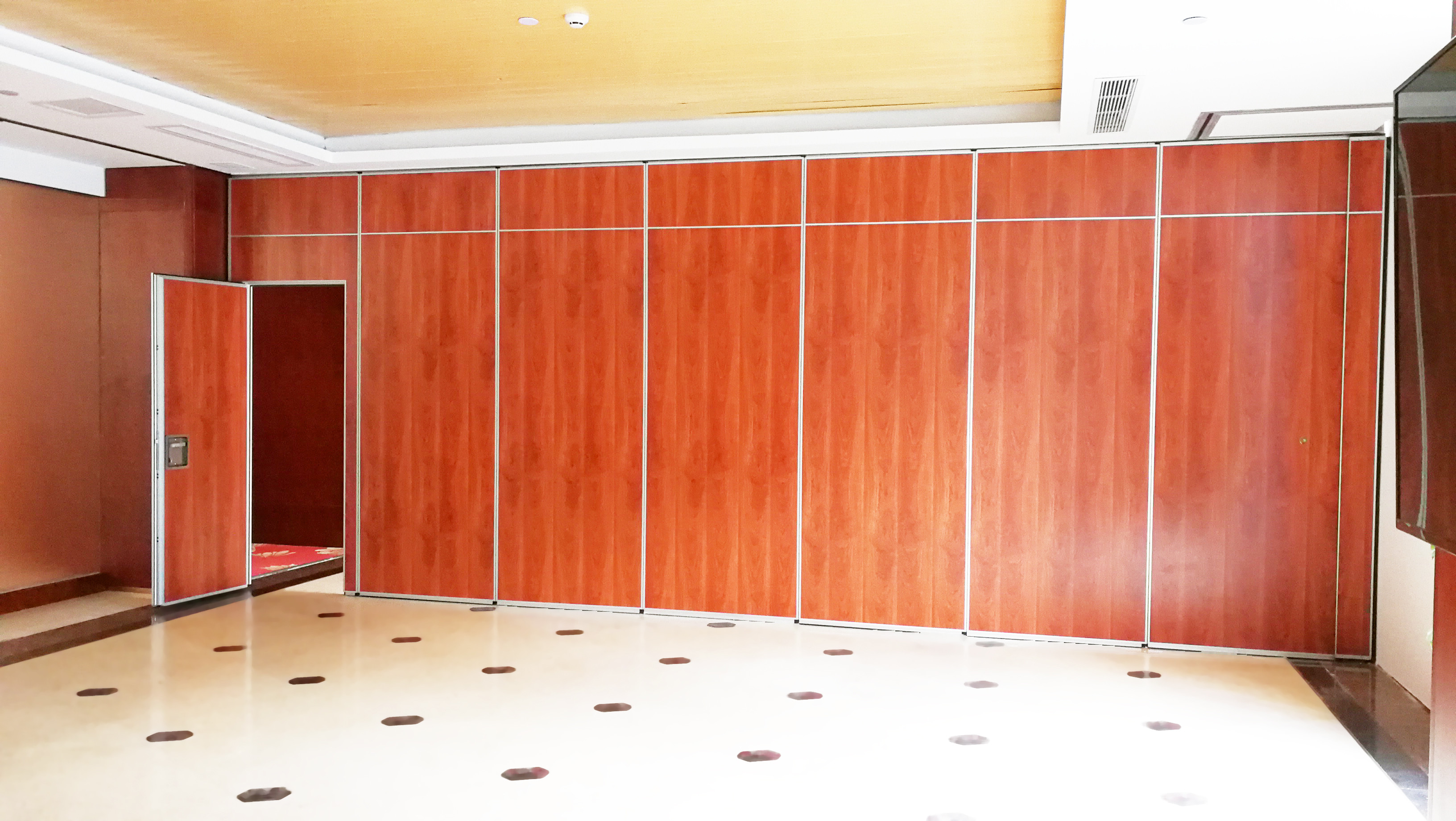

New Style Manual Control Sliding Folding Partition Walls Operable For Banqueting Hall
Product Description
>>BUNGE partition is a top quality moveable wall system that allows you to optimize the use of available space speedily and easily.
>>These sophisticated acoustic movable walls do not require a floor track and yet once positioned the interlocking panels form a rigid structure giving all the properties and appearance of a permanent wall.
Panels:
The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material.
- Basic Panels shall be equal in module.
- Approx. Weight kg/ square meter : 25 kg
- Maximum height : 4000mm.
Panel Surface Finish: The panel surface will be as per the clients requirement finished either in BUNGE factory – China or by others. The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)
| No | Description | Weight
KG/M2 | Material |
| 65Type | 65(T)X680-1210(W)X2000-4500(H)
Acoustic alredution coefficient(db):32
Hermetic dar flex distance(mm):45 | 17 | Class-fiber board
Gypsum board
Firber board |
| 19 |
| 20 | Meimine decorative
Color steel plate
Ctype partiuon |
| 24 |
| 85Type | 85(T)X680-1230(W)X3000-6500(H)
Acoustic alredution coefficient(db):45
Hermetic dar flex distance(mm):45 | 24 | Class-fiber board
Gypsum board
Firber board |
| 25 |
| 28 | Meimine decorative
Color steel plate
Ctype partiuon |
| 38 |
| 100Type | 100(T)X680-1230(W)X5000-8500(H)
Acoustic alredution coefficient(db):53
Hermetic dar flex distance(mm):60 | 40 | Class-fiber board
Gypsum board
Firber board |
| 45 |
| 48 | Meimine decorative
Color steel plate
Ctype partiuon |
| 55 |
| Super High Type | 120(T)X680-1230(W)X8000-17000(H)
Acoustic alredution coefficient(db):60
Hermetic dar flex distance(mm):60 | 60 | Class-fiber board
Gypsum board
Firber board |
| 60 |
| 60 | Meimine decorative
Color steel plate
Ctype partiuon |
Choice of Specifications
We are able to offer movable walls in a variety of specifications and with a number of different features and benefits:
A choice of various heights
Option for glazed panels
Numerous different surface finishes (laminate, wood veneer, black board)
Top hung with no floor tracks (making them forgiving on uneven floors)
Sound reduction available up to 50 db
A choice of mechanical winding handles which operate each panel, or semi automatic systems which can operate all panels with just the push of a button
About us
Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system , and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.
As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply Free design to every client and we will reply in 12 hours if the clients have any questions.
