Multi - Function Room Sound Proof Movable Walls Folding Partitions With Aluminum Tracks

Multi-Function Room Sound Proof Movable Walls Folding Partitions with Aluminum Tracks

Folding partition walls details

To create a better sound insulation folding partition wall door, we put high density fiberglass inside the partition frame, Sourcing from imported world famous fiberglass brand Owens Corning which is the best sound insulation cotton manufacturer.

The folding partition walls will be made from 10 mm MDF boards and shall be 100 mm thick and 1220 mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The folding partition walls panel faces shall be finished with selected material.

Aluminum tracks feature quiet operation, consistent shape for end-to-end alignment, selection of 2 separate ceiling officiants for ease of alignment, corrosion resistance and hard running surface for proper carrier movement. Tracks have been tested for a minimum of 10 years of use.
It uses track and trolleys on individual panels system and track and trolleys on paired panels system.

The folding partition walls series consists of glass, melamine board, fire board, color steel plate, gypsum board and other decorative materials.

The folding partition wall is made of aluminum alloy frame and steel with fire, moisture, noise, environmental protection, non-deformation and other functions, in the hotel partition layout, color and surface decoration, etc. to maintain the hotel after the partition is simple and exquisite, durable and flexible use and very stylish hotel interior style after partition.

Folding partition walls features

1.65mm ,85mm, 100mm aluminum frame thickness panel ,Max height up to 15 meters.

2.Top supported without floor track or guide, only have track on the ceiling.

3.clear anodized extruded aluminum tracks and frames,customized powder coated color are available.

4.Sound insulation certificate :STC 32db to 53db.

5.Available in wide range of finishes, melamine ,fabric/PU leather, HPL, printing etc.

6.Fast delivery and Rich experiences in oversea project installation guide & supervision.

Pass Door

If there is a door in the middle of the folding partition walls, first turn the square hole on both sides of the door to rotate 180 degrees, loosen the upper and lower seals through the drive wheel, and then close the door in the door; open the last stretch of the folding partition walls of the aluminum plate and Upper and lower seals; retract the last screen of the retractable aluminum plate, so that the distance generated by the screen can at least turn the distance of the screen; the active screen partition cut along the direction of the rails to the position of the closing screen; after each group of screens are collected in the same way Press each two screens tightly to minimize the distance between the screen and the screen. If necessary, you can open the up and down motion seals that are separated by the last active screen that is housed in the Tibetan plate so that it presses against the rails and the ground. This will prevent other people from simply pulling the screen out.

Technical information

acoustic folding partition

folding room partitions

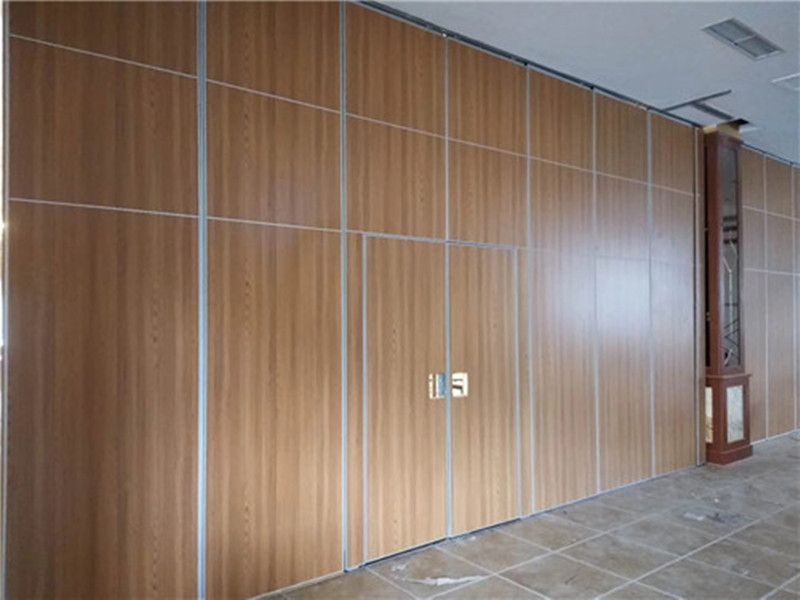

Multi - Function Room Sound Proof Movable Walls Folding Partitions With Aluminum Tracks Images
