Classroom Movable Partition Doors Sliding Folding Partition Walls for Office
Folding partition walls details
The folding partition wall is a movable wall that can be easily dismantled and reloaded, and is often found in large spaces such as hotels, exhibition halls, restaurants, and offices.
Fol can also be used as mobile screens, movable partitions, and track partitions. It is a kind of movable wall that can separate large spaces into adjacent small spaces. It can serve as a common wall and increase the function of large spaces. This folding partition wall is generally fire-resistant, flexible and easy to install and can be recycled.
These folding partition walls hanging wheel material is generally the United States DuPont POM particles, with high strength, wear resistance, acid and alkali resistance, corrosion resistance, to ensure its long life. The two wheels are equipped with a suspension wheel composed of steel rings. The movement is smooth, smooth and silent. The bearings can be configured to rotate the screen at a certain angle.
Type 65, Type 85, Type 100 and Type 125. The folding partition walls uses PAR sound-absorbing glass fiber sound insulation materials. It has good fire insulation, noise reduction and noise reduction performance and meets relevant standards.
Folding partition walls features
Top hung without track at floor level.
Retractable acoustic seals at top and base operated either by quick release handle or semi-automatically with controls.
Single or two point suspension for center or remote parking options.
Variable track arrangements for corner, three or four way abutments.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Application:
Ease of operation, acoustic performance and pleasing aesthetics are combined in it to create movable walls that maximize spatial versatility in offices, conference and meeting rooms, training areas, educational establishments, hotels and banqueting suites.
Technical information
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Product Tags:
|
|

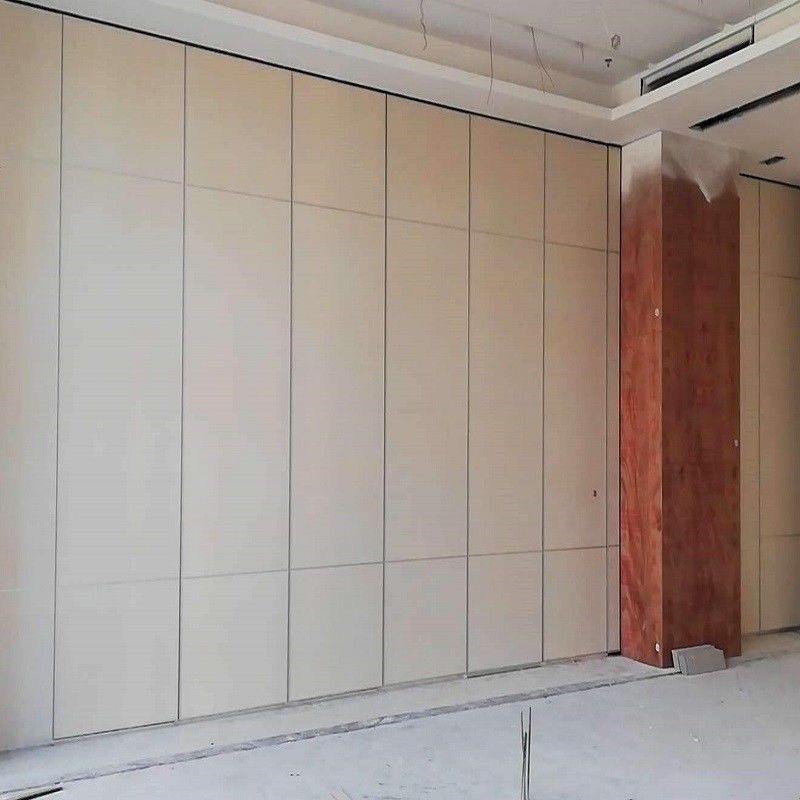

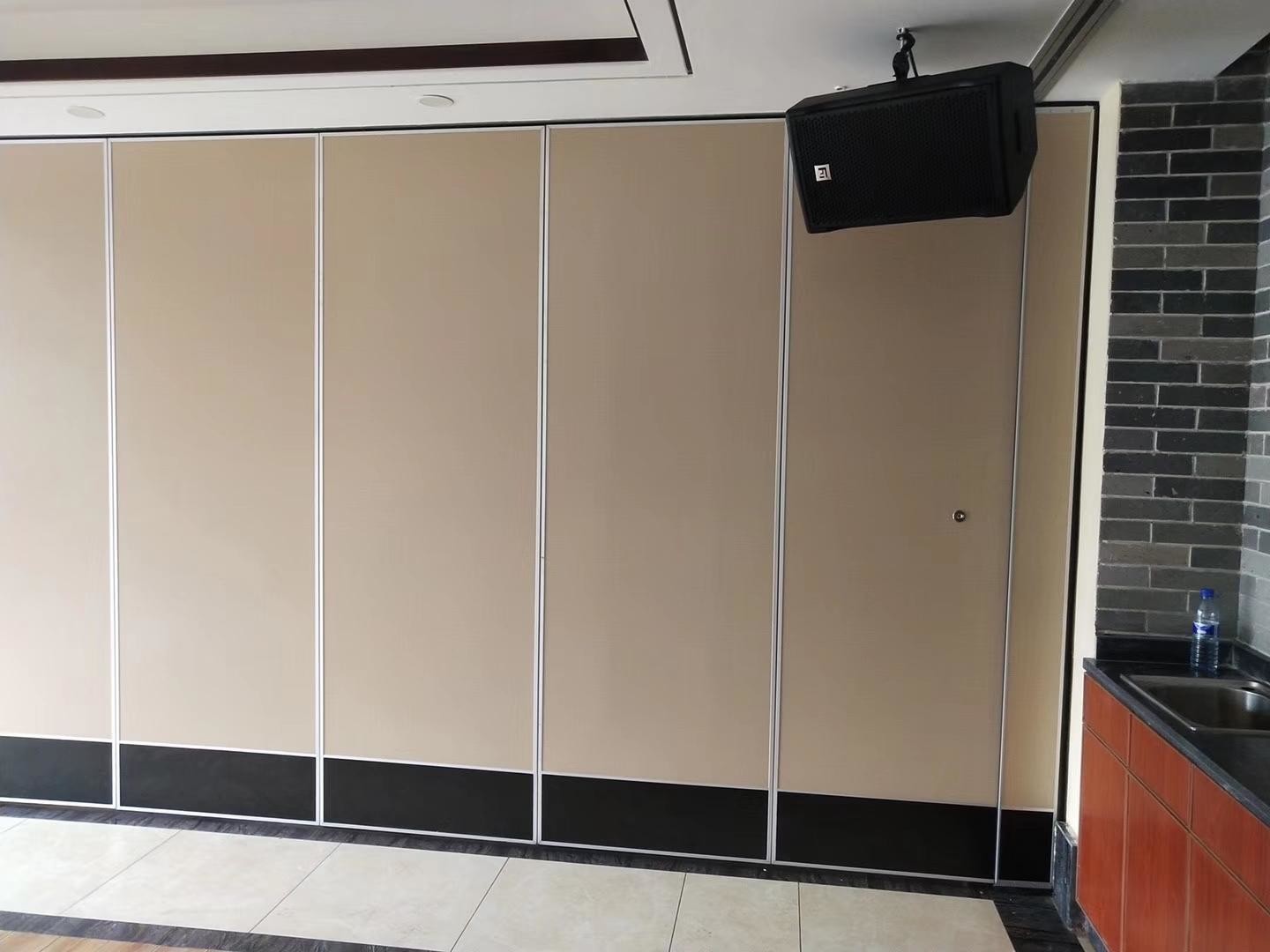

Classroom Movable Partition Doors Sliding Folding Partition Walls For Office Images
|
