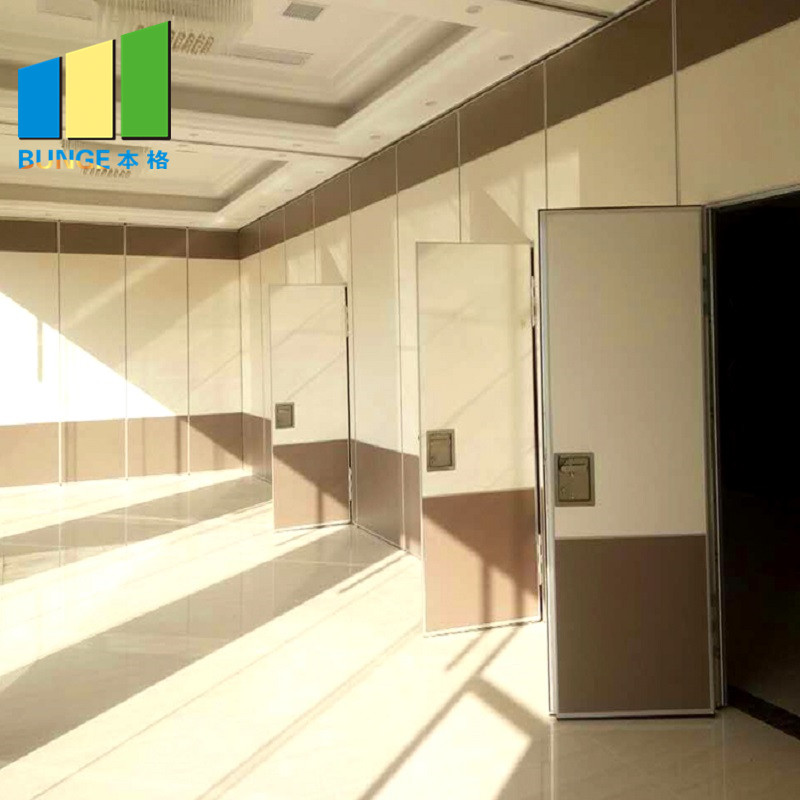

Fabric Acoustic Movable Wall Davao Foldable Sliding Partition Walls for Meeting Room
Sliding partition details
Davao sliding partition wals is centralization of studying, designing, sales, manufacture, installation and after sale service. Making full use of our rich acoustic technology advantages.
Sliding partition walls (movable walls system board, and movable partition screen ) has excellent sound insulation and anti-fire features. We adopt advanced domestic and foreign technology, combined with our rich practice experience and creative design, our products have flexible movement and easily to be used.
Our sliding partition wall is widely used at exhibition hall, international conference center, hotel banquet hall, KTV, high class restaurant, government office building, school and hospital meeting room etc, and any places where need to be separated and full used easily!
This sliding partition wall has achieved all of our clients, builders and designers highly praised. We are looking forward to cooperating with more domestic and oversea clients and designers to obtain higher and common success!
| Technical Information |
| TYPE | 65A | 85A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 85mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Sliding partition walls details
1. Change the room space flexibly.
2. Heavy track loading capacity make sure the safety of Partition.
3. Precise welding between separate rail can avoid repairing and maintenances in high probability.
4. Davao sliding partition walls retract and push easily, only one person can handle the moving job.
5. Wide application: can be used in office place, commercial place, exhibition place, hospital place, etc.
