Conference Hall Removable Acoustic Wall Sliding Folding Partition For Banquet Room

Name: Conference Hall Removable Acoustic Wall Sliding Folding Partition For Banquet Room
Brand: EBUNGE
Price: 1 USD

Quality Conference Hall Removable Acoustic Wall Sliding Folding Partition For Banquet Room wholesale

Brand Name : EBUNGE

Model Number : 65 mm sliding folding partition

Certification : ISO9001

Place of Origin : Guangzhou, China

MOQ : No MOQ, small quantity welcomed

Price : US $78-95 per square meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 square meters per month

Delivery Time : 12-20 days

Packaging Details : Paper carton, outside with wooden boxes

Product name : Sliding folding partition

Application : Banquet room partition

Size : Partition walls customized

Thickness : 65 mm(2 9/16 inch)

Frame material : Aluminum alloy

Advantages : Sound proofing

Contact Now

Conference Hall Removable Acoustic Wall Sliding Folding Partition for Banquet Room

Sliding folding partitions details

1) When moving a sliding folding partition wall panels, there is a 20-25mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.

2) Once a sliding folding partition walls panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.

3) The pressure seals are extend and retracted by a single 180 degree turn of removable operating handle.

4) Final Closure of the sliding folding partition wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.

5) As you know, when we do not use the sliding folding partition walls, we can park them to the parking area. Actually there are many parking styles for the sliding folding partition walls, all of the clients can choose the suitable one and we can adjust based on their own project site. If you need some pocket doors to hide the panels, BUNGE Factory also can produce for you.

Conference Hall Removable Acoustic Wall Sliding Folding Partition For Banquet Room

Technical Information

Model	BG-65 series	BG-85 series	BG-100 series	BG-high series
Suspension system	Aluminum hanging	Aluminum hanging	Aluminum hanging	Steel hanging
Basic thickness	65mm	85mm	100mm	100mm
Total thickness	65/75/85/95mm	85/90/100/110mm	100/120/130mm	100/120/130mm
Max height	Up to 3800mm	Up to 4500mm	Up to 6500mm	Up to 12000mm
Width	600-1230mm	600-1230mm	800-1230mm	800-1230mm
Floor/ceiling sealing strength	Telescopic aluminum tube with rubber strip
Side walls sealing strength	Double seal tape
Sound insulation level	26dB-30dB	28dB-34dB	32-40dB	32-40dB
Panel structure	Aluminum frame with wooden keel		Aluminum frame with steel keel
Panel density	22-28kg/sqm.	24-32kg/sqm.	32-50kg/sqm.	/
Surface material	Melamine laminate/fabric/PU leather/wallpaper/veneer/customized

Conference Hall Removable Acoustic Wall Sliding Folding Partition For Banquet Room

Sliding folding partition FAQ

1) Sliding folding partition walls interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.

2) To ensure additional friction connection, sliding folding partition wall panels shall be integrated with magnetic strip.

3) Sliding folding partition walls spring load retractable sound seal at the top and bottom element.

4) Face panel hung in sliding folding partition walls free suspension, for improved sound insulation, easy redecoration of surface panels. Edges shall be protected with Aluminium profiles.

5) Easy element adjustment after installation.

We Offer:

 ◆ A full professional design service.

 ◆ Survery and installation guide.

 ◆ Using top quality materials and components.

 ◆ A fully experienced work team.

 ◆ Maintenance contracts to ensure your valuable asset remains in full work order.

Product Tags:

acoustic folding partition

folding room partitions

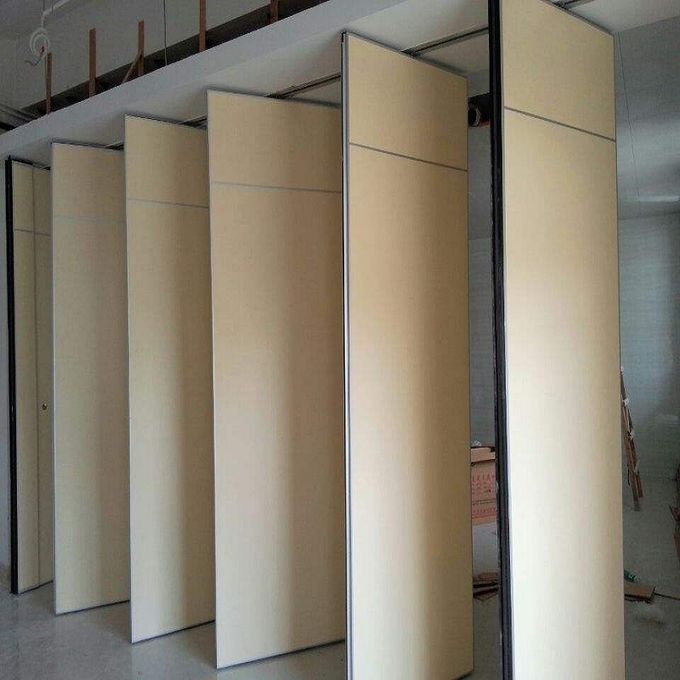

Conference Hall Removable Acoustic Wall Sliding Folding Partition For Banquet Room Images
