Fabric Movable Wall System Davao Acoustic Foldable Sliding Partition for Meeting Room
Acoustic foldable partition details
Imagine being able to negotiate your space to work to your advantage, having the ability to single-handed transform a large area into multiple smaller spaces with minimal effort within a few moments. Now imagine the possibility of maximizing your revenue through the use of acoustic foldable partitions, during the day hosting multiple meeting functions simultaneously and, come evening time, the partitions are effortlessly stacked away and transformed into a large function room.
Our acoustic foldable partitions, also known as operable walls, are manufactured to the highest specification and can meet the highest safety requirements.
Acoustic foldable partitions offer many fantastic benefits, whether it’s dividing a school hall into two different multi-purpose areas for simultaneous physical activities, or splitting a large conference facility in smaller seminar rooms by sub-dividing these spaces with acoustic movable walls.
Technical Information
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only |
| Track system | Single or twin point |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
| Locking | Optional lock to passing doors |
| Passing doors | Single open in one panel or double open in two panel |
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Acoustic foldable partition features
Acoustic foldable partitions are of double skin construction with a robust internal aluminium frame. The acoustic foldable partitions panel faces are not 'hard' fixed to the frame and therefore when sound waves 'hit' one side of the wall the vibration caused is not directly transferred to the opposite face. Aluminium edge profiles may be CONCEALED, OR EXPOSED to provide a trim.
Heavy duty rubber gaskets are fitted to the panel profiles ensuring maximum acoustic sealing to all surrounding surfaces.
The highest levels of sound reduction are achieved by introducing rubberized bitumen membranes and mineral wool insulation to the core of each panel.
The rapid action mechanism, which operates the retractable seals, is designed to exert sufficient pressure to achieve the high levels of sound reduction offered. The retractable seals are designed to tolerate deviations in floor level and the deflections of supporting structures. The tolerance limit is evaluated for each individual application.
Product Tags:
|
|

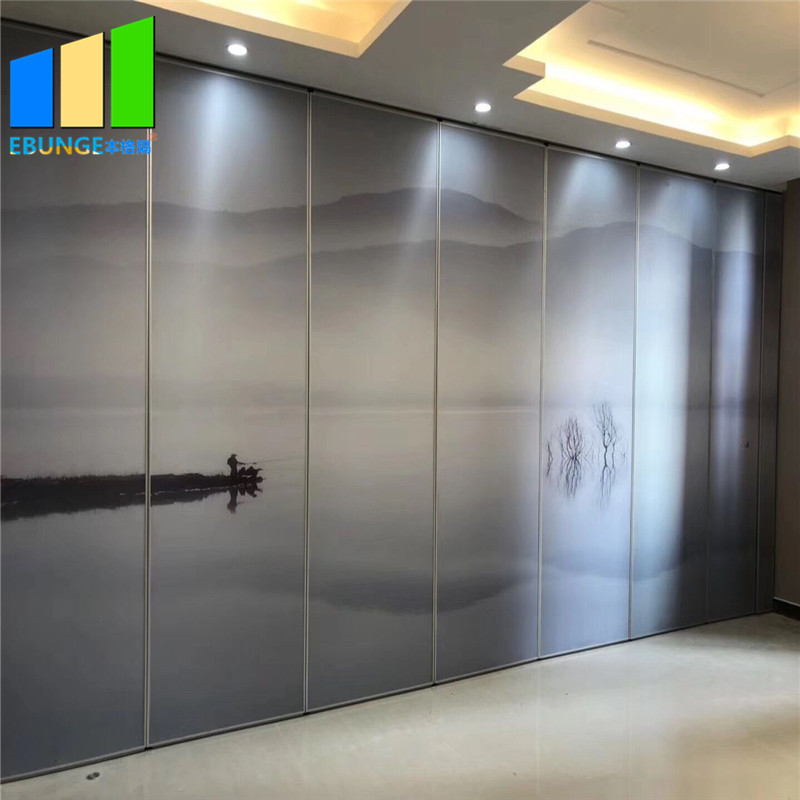

Fabric Movable Wall System Davao Acoustic Foldable Sliding Partition For Meeting Room Images
|
