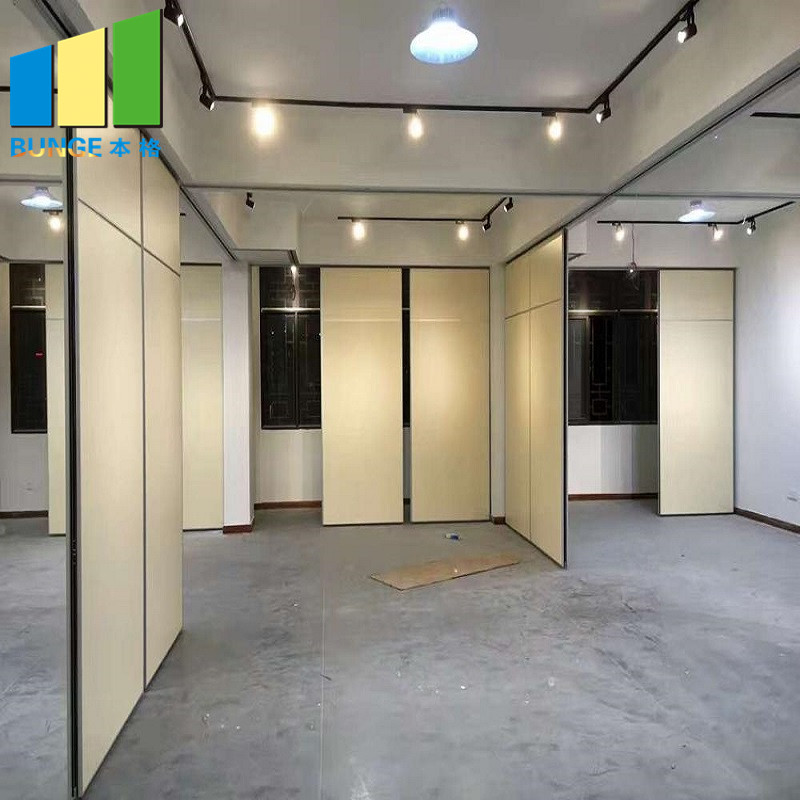

Dubai Foldable Wall Partition Soundproof Sliding Partitions For Conference Center
Soundproof sliding partition features
Available in top-supported or floor-supported configurations, the center-hung, paired panels are perfect for straight-line openings and offer quick, easy setup.
Hinged together in groups of two, facilitating quick, easy setup.
No auxiliary storage track or support required.
Economical overhead support of straight-line track.
Smooth operation.
All of the measurement,surface and the colors and be customized.
Simple automatic bottom seals for efficient operation.
Suited for applications that require exceptional durability, acoustic control, and frequent use.
Panels are designed to be stored at either or both ends of an opening.
Frequently used to divide classrooms, meeting rooms, or office spaces.
Soundproof sliding partition details
1. Horizontal Seals
The principle of double skin construction on soundproof sliding partition system is applied consistently in the seal area in order to ensure maximum sound insulation. A spindle mechanism presses extendable, spring loaded, double seals against the floor and the ceiling track. Any irregularities in the flooring are offset by spring-loaded double chamber seals. The contact force of the sealing strips does not place excessive strain on screed floors, but does ensure that the flexible system is sufficiently stable to prevent the panels moving, even in the event of an attempted forced entry.
2. Corner Seals
Flexible resolves the technical issue of corner seals with specially designed, corner pieces that also reinforce the stability and done insulation properties of movable and operable partition system.
3. Magnetic Strip
The individual panels are centered via the magnetic strips to guarantee sound positive locking and sealing.
4. Operating Handle
In manual systems, the element sealing strips are operated using a crank. The crank has as a captive bayonet fitting to prevent it from being pulled off. The bayonet arrangement is easy to disengage and prevents crank slip page on movable and operable partition system.
5. Frames
The soundproof sliding partitions frame is made by torsion hollow-chamber aluminum alloy and sectional by steel tubing. Therefore, Transverse forces will not cause any deformation for the frame. Combined with the panel mounted in acoustically free suspension, flexible elements are able to offer both exceptional strength and outstanding sound insulation for movable and operable partition system.
6. Roller Assemblies
The dampening track roller assemblies prevent the transmission of impact forces and operating noise, to protect the element, rail and carrier on movable and operable partition system.
Technical information
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or
double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) |
